1. Main window
  2. Parameter edit window
  3. [S] Parameter plots
  4. Coupling matrix window:
    1. Matrix Editor Window
    2. Error in [S] parameters after Coupling Matrix rotations

[S] Parameter plots

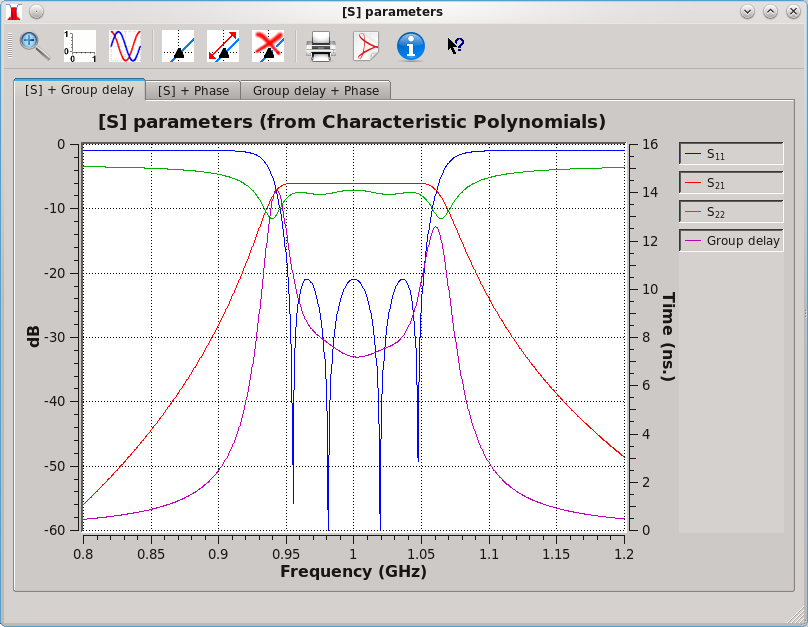

To plot [S] parameter curves, we have developed a separate module called 'dBplot'. It is a general tool to plot curves and it has been released as open source free software under GNU license terms.

Zoom plot.

Set curve scaling.

Set curve properties.

Add new marker at a curve point.

Move marker.
Moves the marker closer to a clicked curved point.

Delete marker.
Deletes the marker closer to a mouse click.

Print plot.

Save as PDF file.

About dBplot.
